DESCRIPTION

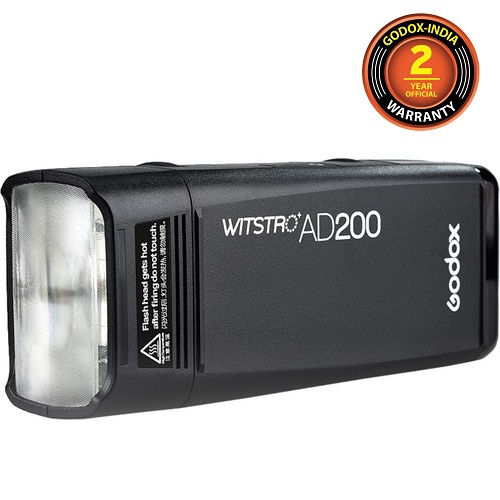

Godox Ad200 TTL Pocket Flash Kit
The AD200 TTL Pocket Flash Kit from Godox is built around a unique flash light source that has a standard speedlite head and a bare bulb head that give you the option of 2 distinctly different qualities of light. The kit comes with the 2 heads, lithium battery, charger and carry case.
The speedlight head outputs the standard look of an on-camera flash that can be modified using an optional softbox, beauty dish or umbrella. The bare bulb head features a removable flash tube and produces 360 degrees of soft, bright, nearly shadowless light. The head uses optional reflectors that focus the beam angle and give you directional control.
The AD200 has impressive core features such as 200 Ws of power adjustable in 8 steps from 1/128 to 1/1, recycling from 0.01 to 2.1 seconds and flash durations as short as 1/11,300 sec. The flash runs on a removal rechargeable lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes.
The AD200 has 3 flash modes: Manual, TTL, and Multi (Stroboscopic). Manual outputs the user's choice of power, modeling light, first or second curtain sync, etc. Multi controls the stroboscopic rate up to 90 times (90 Hz). TTL takes advantage of the flash head's built-in X1 receiver. Optional X1 TTL transmitters are available for Nikon, Canon, Sony, Olympus, Panasonic and Fuji cameras. They will also detect a separately purchased LED head. The 32-channel wireless system controls flash mode, first and second curtain sync, High-speed sync up to 1/8000 sec, power level, modeling lamp and ready beeper at distances up to 328'. Firmware updates are obtainable on the Godox website.
Built-In 2.4 GHz Wireless X System:
Built-in wireless receiver: control triggering power level, alert beep with optional wireless transmitter. Compatible with Nikon, Canon, Sony, Olympus, Panasonic and Fuji TTL.
Bare Bulb and Speedlight Flash Heads:
Bare bulb and speedlite flash heads are included to vary your quality of light. Color temperature is a steady 5600K over the entire power range.
Large Capacity Lithium Battery Pack:
The 14.4 V / 2900 mAH battery pack gets 500 full power flashes with 0.01 to 2.1 sec. recycling.
AV Panel:

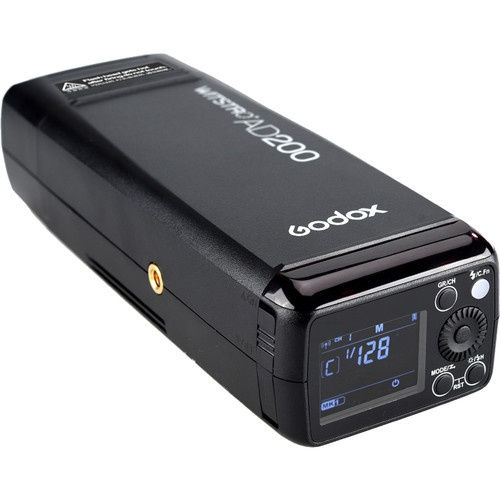

Easily readable digital panel displays your adjustments
Accessories:
Barn Doors, color filters and diffusers are available to personalize your work.
Numerous Control Functions:
- 8-step power range: 1/1 to 1/128
- Supports flash exposure compensation
- 1/8000 sec high-speed Sync
- First and second curtain sync
- Modeling lamp
- Manual flash
- Multi flash
- Custom functions
SPECIFICATIONS
Maximum Watt/Seconds
200
Compatibility
TTL with Canon, Nikon, Sony cameras with optional X1-C, X1-N, and X1-S transmitters TTL with Olympus/Panasonic, Fuji cameras with optional X1T-O and X1T-F transmitters
Color Temperature
5600K (+/-200K)
Recycle Time
0.01 to 2.1 sec
Flash Duration
Speedlite Flash Head at t0.1- 1/220 to 1/13,000 sec Bare Bulb Flash Head at t0.1- 1/220 to 1/11,300 sec
Flash Delay
Yes, 0.01 to 30 sec
Sync Mode
High-speed sync up to 1/8000 sec First curtain sync and second curtain sync
Flash Exposure Compensation
Yes, plus or minus 3 stops in 1/3 stop increments
Flash Ready Indicator
LED, beep Flash hibernates automatically after 30 minutes of non-use
Built-in Slave Cell
S1 and S2 optical slave modes 2.4 GHz radio system
Mounting
1/4-20 female threads AD-E Holder (stand mount)
Fan Cooled
No
Replaceable Flashtube
Yes, in bare bulb head
Connectors
3.5 mm sync input Wireless control port USB port
Battery
Lithium, 14.4 V / 2900 mAH Power remaining indicator
Number of Flashes @ Full Power
500
Dimensions
6.6 x 3.0 x 2.0 (168 x 75 x 50 mm) without flash head
Weight
560 g without flash head and battery
Package Weight(kg)
1.9 kg
Box Dimensions (LxWxH)
10.05 x 7.65 x 3.95
